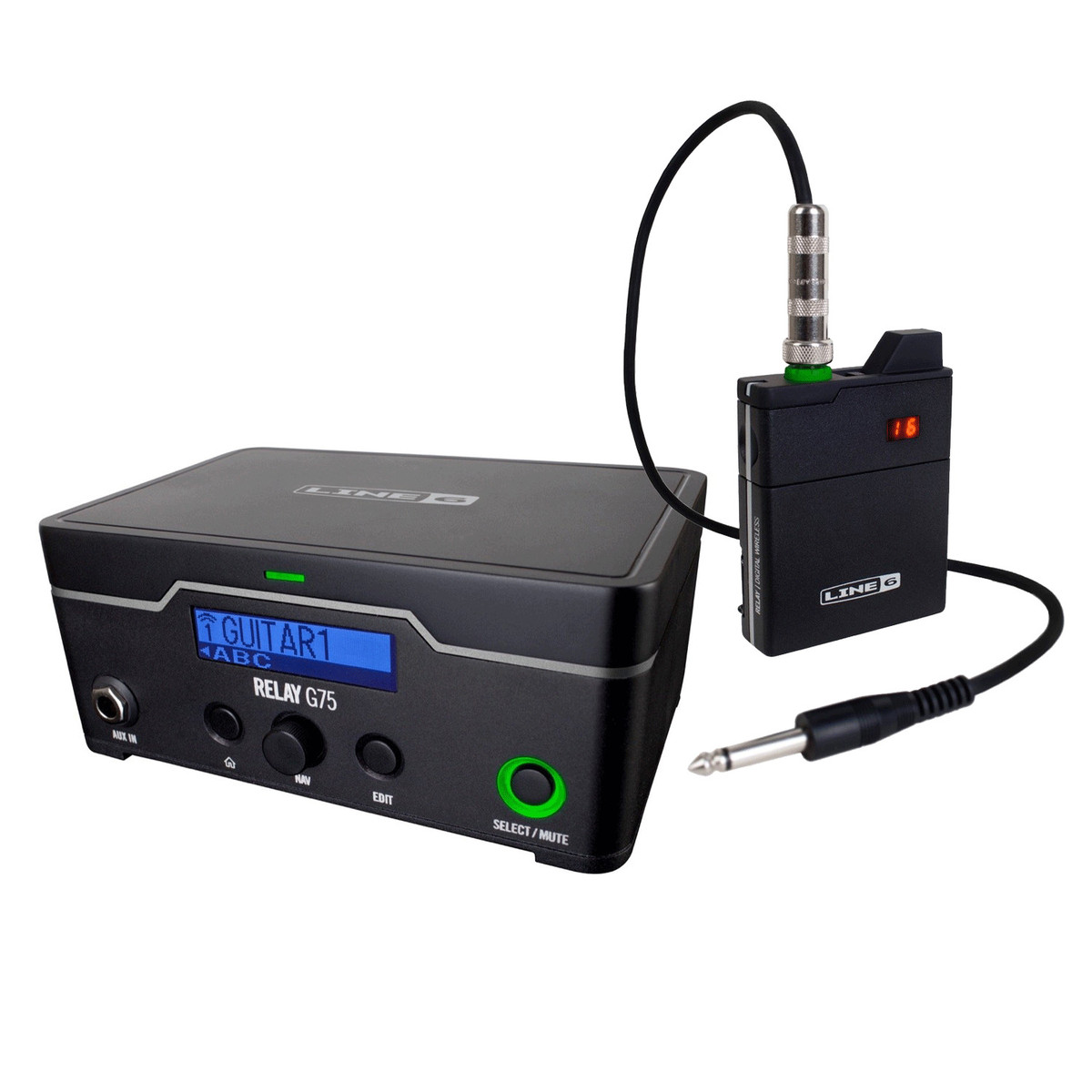

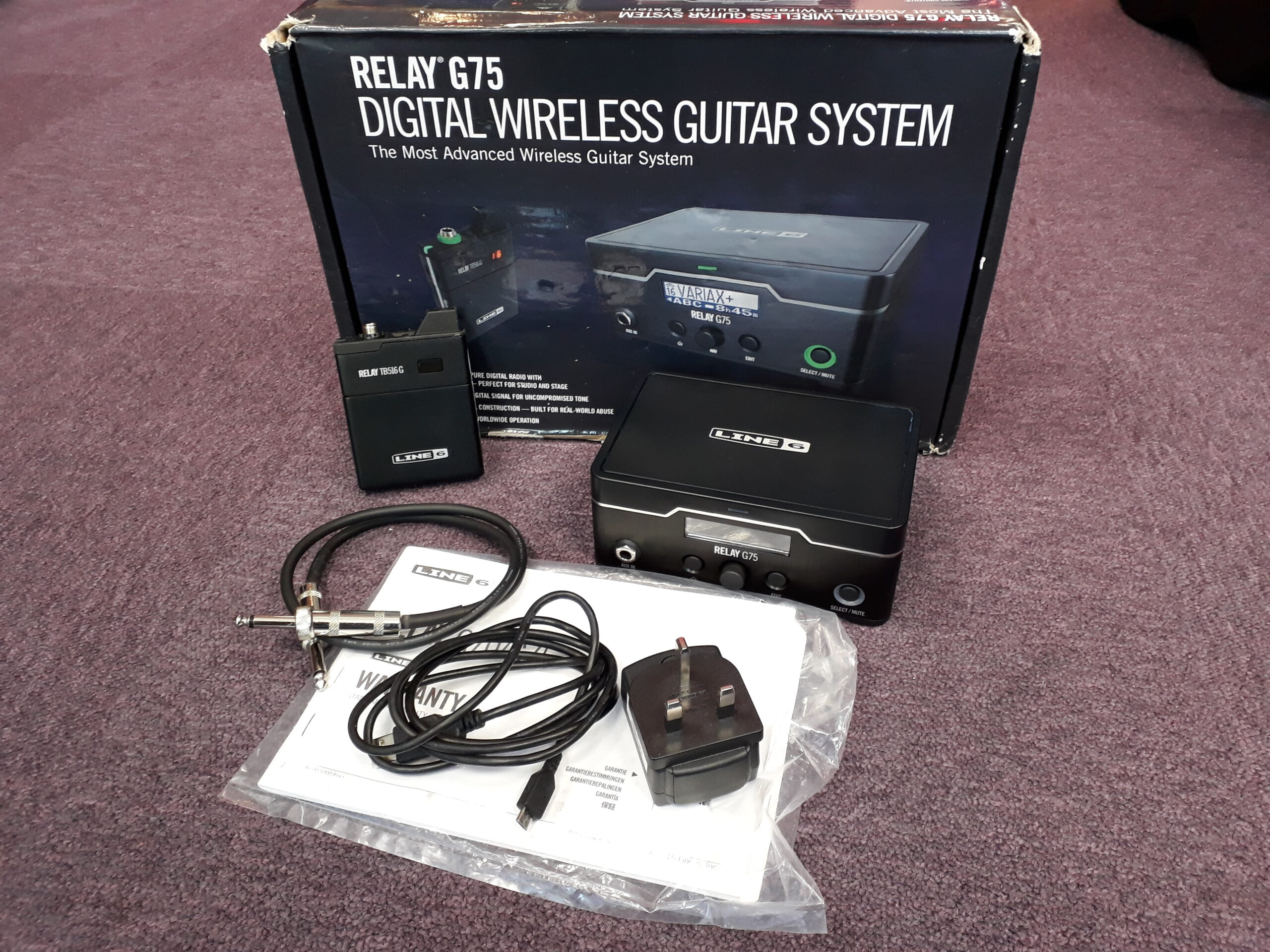

Line 6 Relay G75 Wireless Guitar System

Multiple Input and Output Connectivity

Not only is the Relay G75 the industry’s leading digital wireless system but it also incorporates a range of impressive functions into a single robust unit. With the ability to connect to multiple instruments the G75 is designed by professionals for professionals. The multi connectivity of the G75 allows you to connect multiple transmitters to easily and quickly switch instruments meaning playing different guitars in alternative tunings is no longer an issue. Additionally the G75 has three master outputs (2 x 1/4″, 1 x XLR) which allows you to use it as an ABY switcher having multiple amplifiers perfect for achieving high gain tones with one amp and smooth, rich cleans with another.

Low Latency & Aux Input

Unlike most other tuners and even a lot of studio quality interfaces the G75 provides next generation minimum latency of under 1.5ms which delivers a seamless playability, so good you won’t even notice the difference. Additionally the Aux input on the G75 can be used to connect an additional input or as a backup cable. If the G75 does not register any connection from the transmitter it will automatically switch the master input the Aux input allowing you to quickly plug a cable in and keep playing without have to remove the G75 from your pedal chain.

Hi-Fidelity Audio & 8 Hour Battery Life

A custom-designed radio with four calibrated internal antennas delivers a lossless 24-bit digital signal and a wide dynamic range of up to 120dB. And unlike other digital wireless systems the Relay G75 never compresses the signal providing guitarists with the purest possible audio quality and frequency response of 10 Hz to 20 kHz. With a transmitter battery life of up to 8 hours active and 60 hours in the intelligent sleep mode you can be sure the G75 will never fail you mid show.

Visual Feedback & LED Indicators

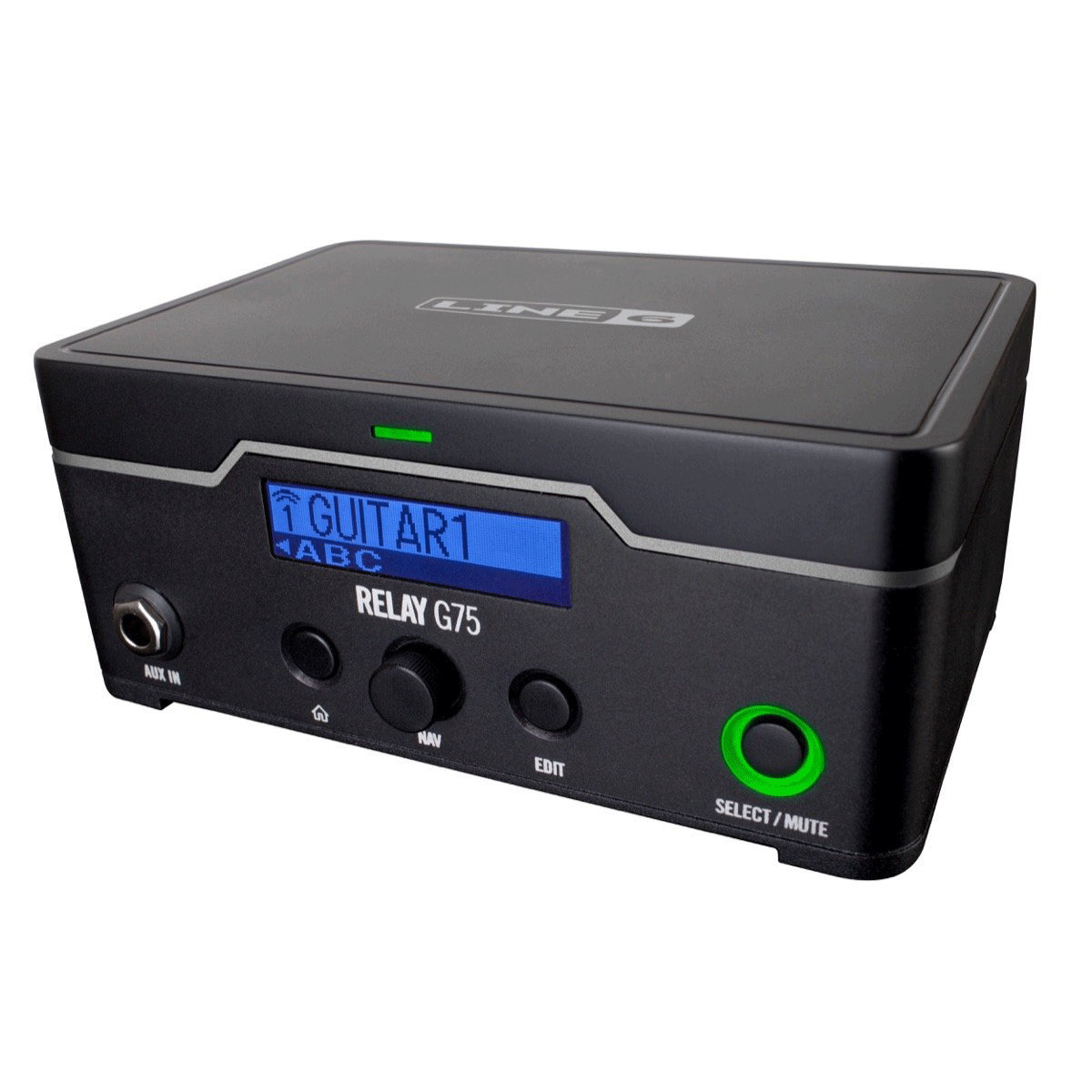

With the compact receiver size it can be mounted above your amplifier whilst the built in screen provides visual feedback to inform you of the current channel, patch and remaining life of the transmitter. This extremely useful feature removes the guess work allowing you to know exactly how long your battery life has left whilst the LED ring around the switch changes colour in regard to which output channel is currently selected.

Specifications

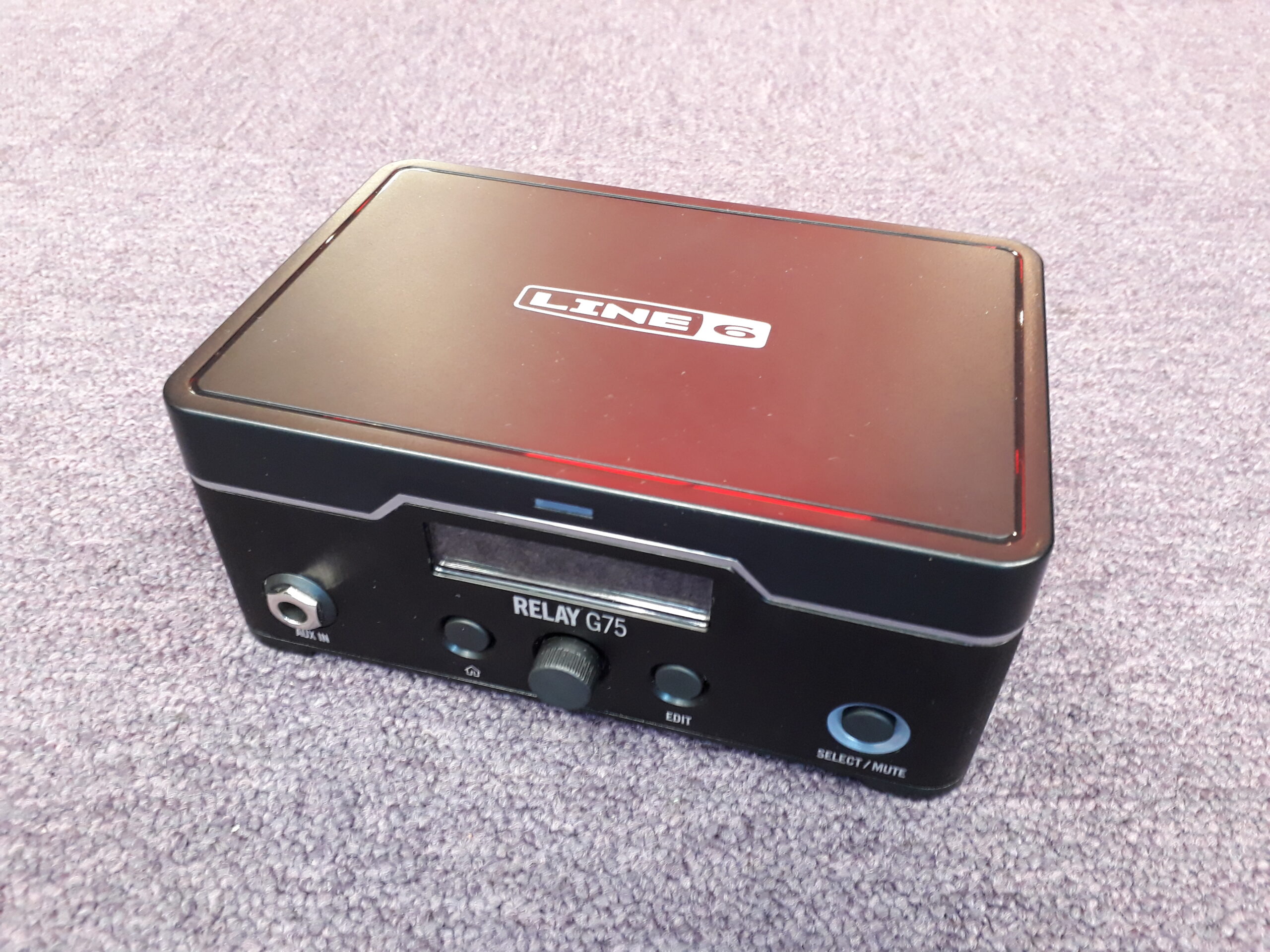

Relay G75 Receiver

• Inputs: 1 x 1/4″ Jack

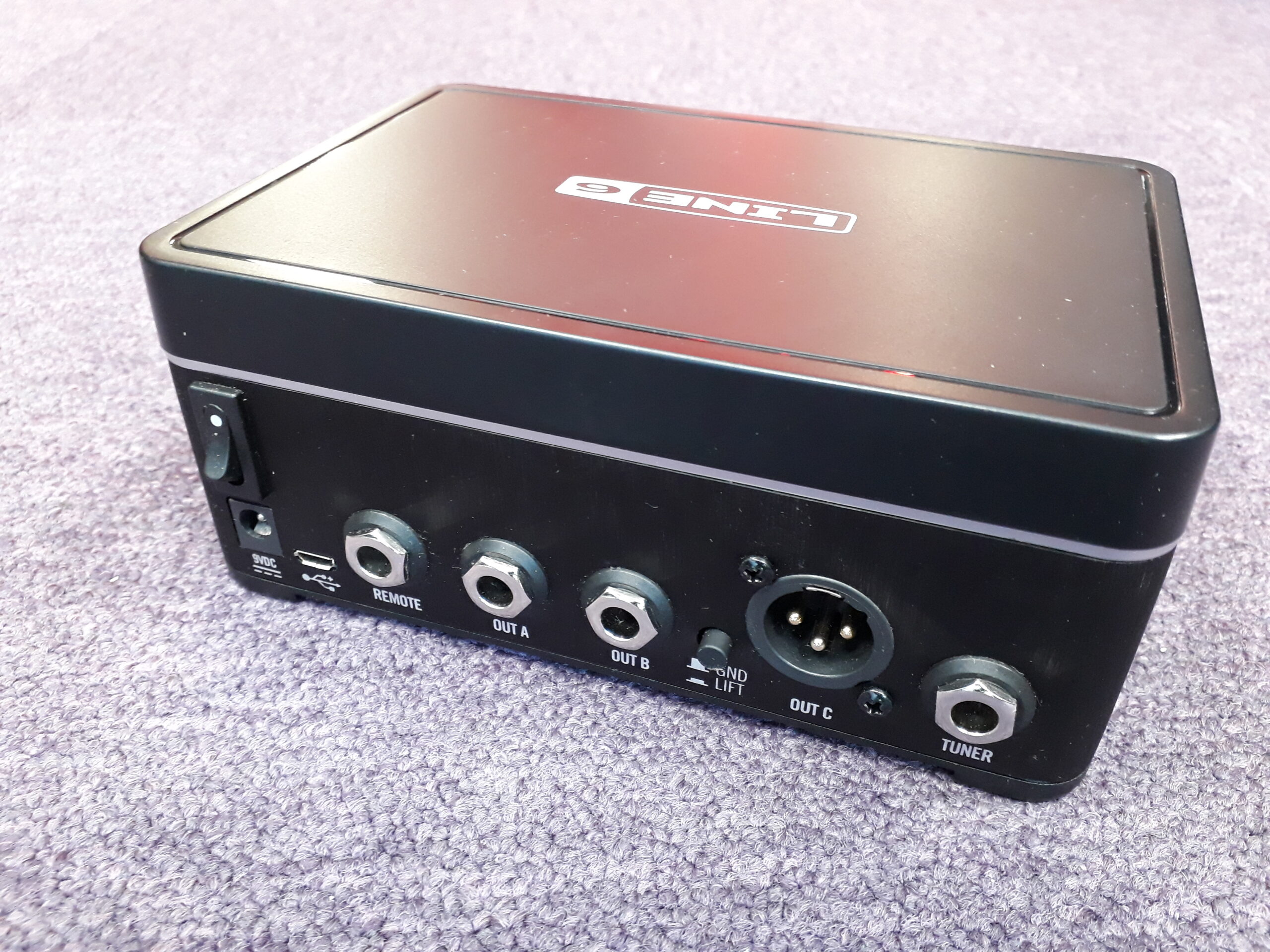

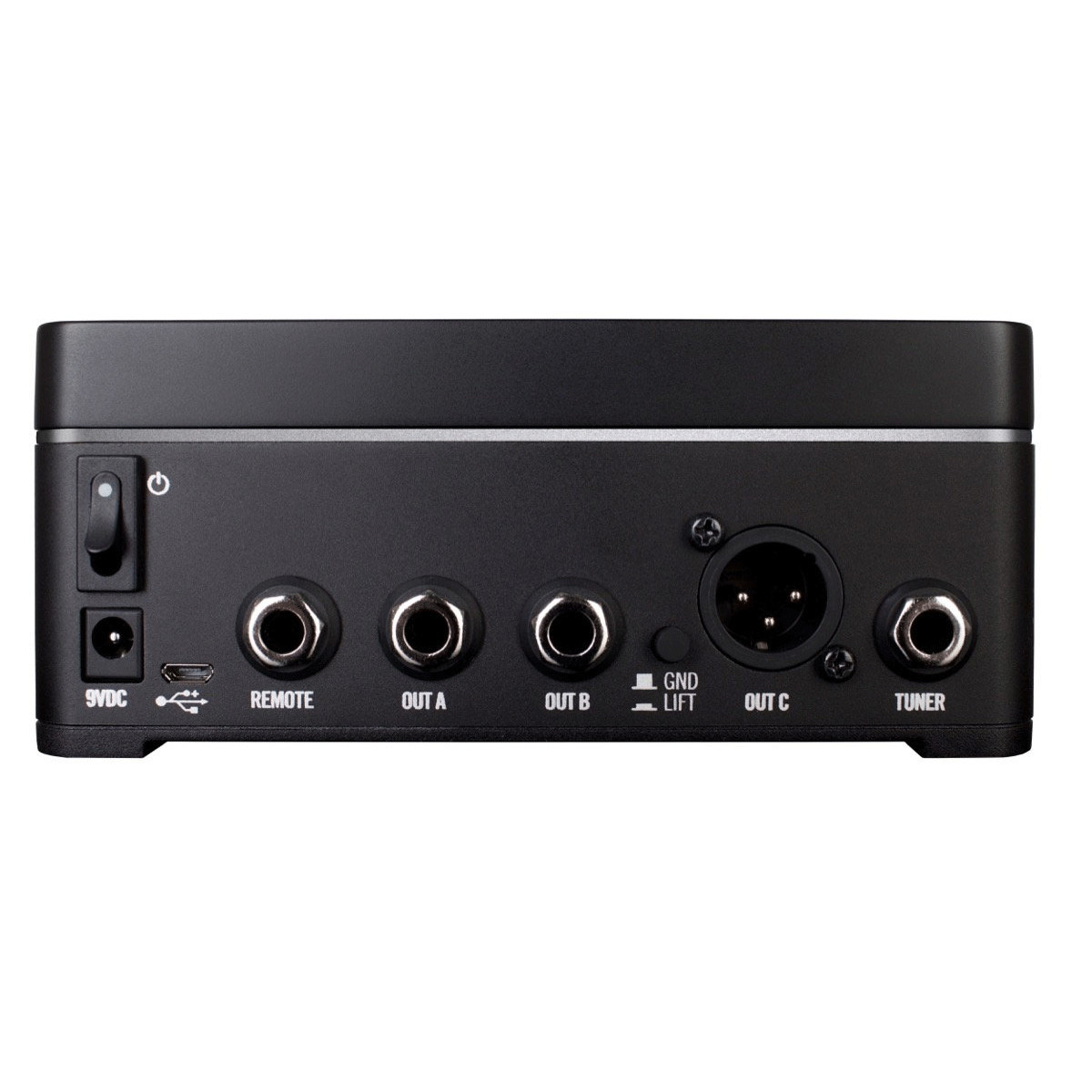

• Outputs: 2 x 1/4″ Jack, 1 x 1/4″ Tuner, 1 x XLR
• Other Connections: 1 x USB, 1 x Remote
• Transmission Type: Digital
• Operation Radio Band: 2.4GHz ISM
• Radio Mode: Frequency Hopping
• Latency: < 1.5ms
• System Lock Time: < 1 Second
• Frequency Response (+/-1 dB): 10 Hz – 20 kHz
• Dynamic Range: >120 dB
• THD + Noise: <0.04% (1kHz @ -10dBFS)
• System Gain: 0 dB Nominal
• Operation Range: 60m / 200Ft
• Available Channels: 16
• Aux Input Impedance: 1.3M Ohm
• Aux Input Level (Max): 5.5Vpp
• Aux Input to Output S/N Ratio: > 120 dB
• USB Type: Micro USB 2
• Power Requirements: USB Bus or 9V DC
• Operating Temperature: 0°C to 50°C
• Storage Temperature: -10°C to 50°C
• Height: 2.06″ / 52.98 mm
• Width: 4.06″ / 103.03 mm
• Depth: 5.53″ / 140.34 mm

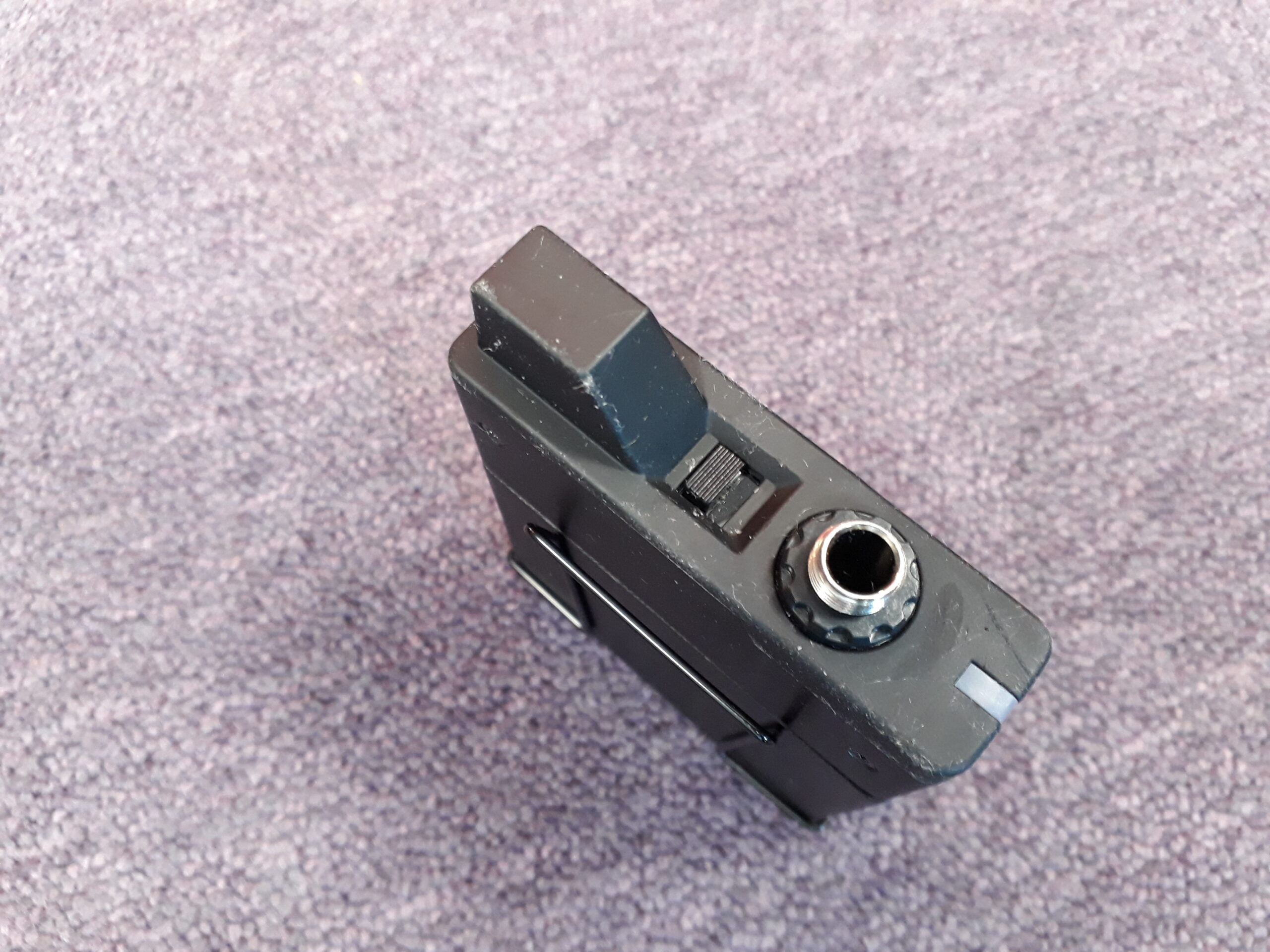

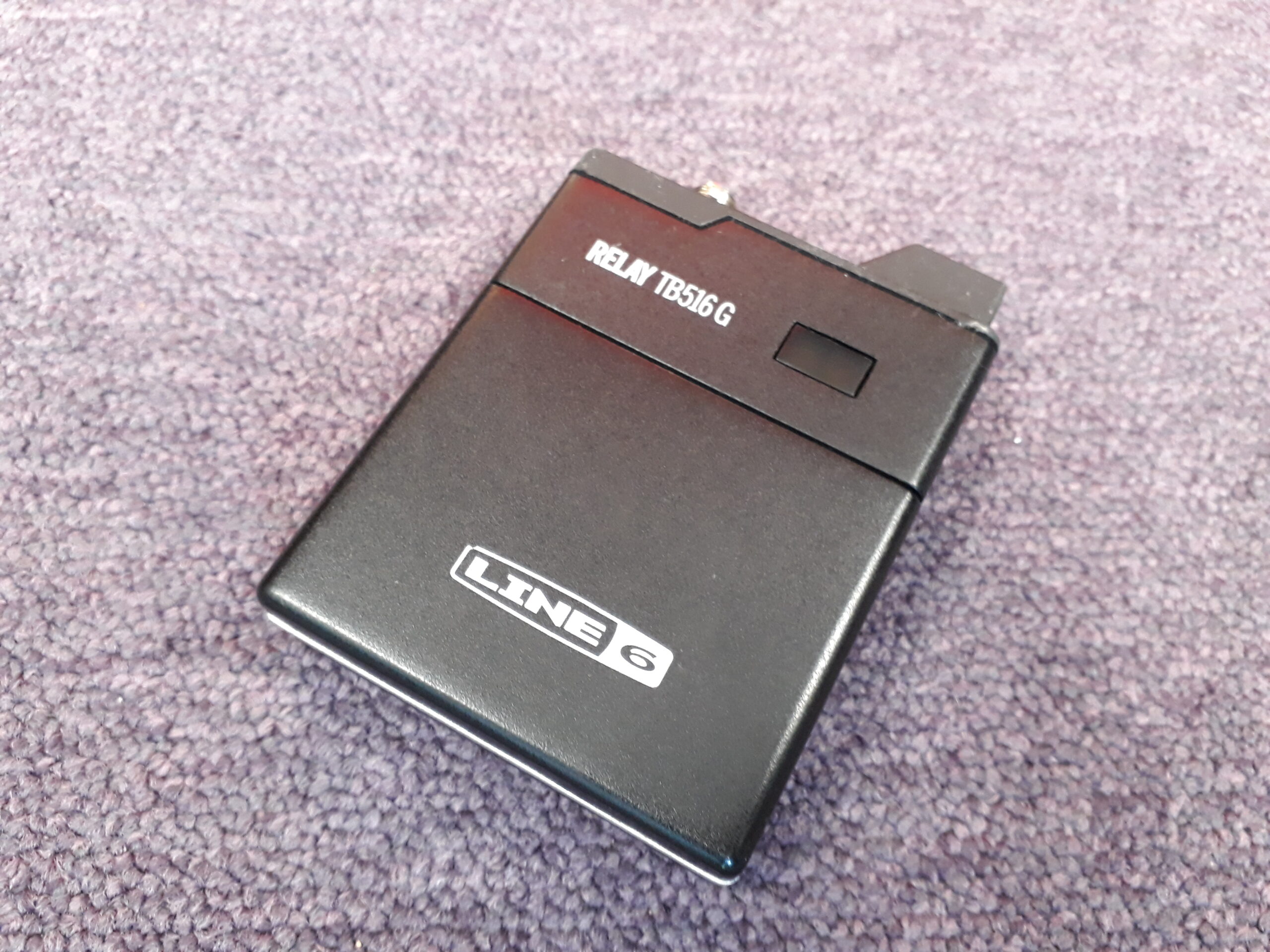

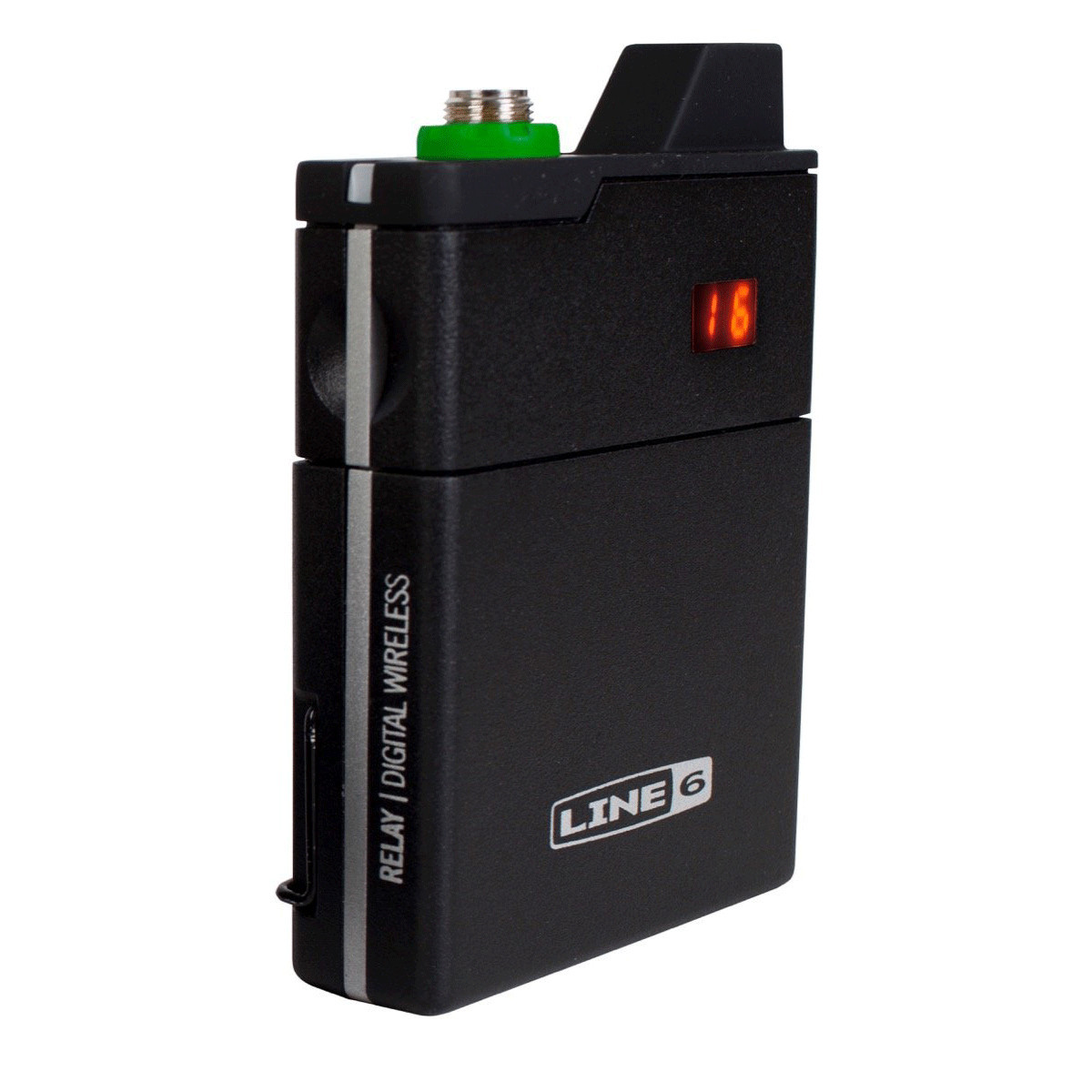

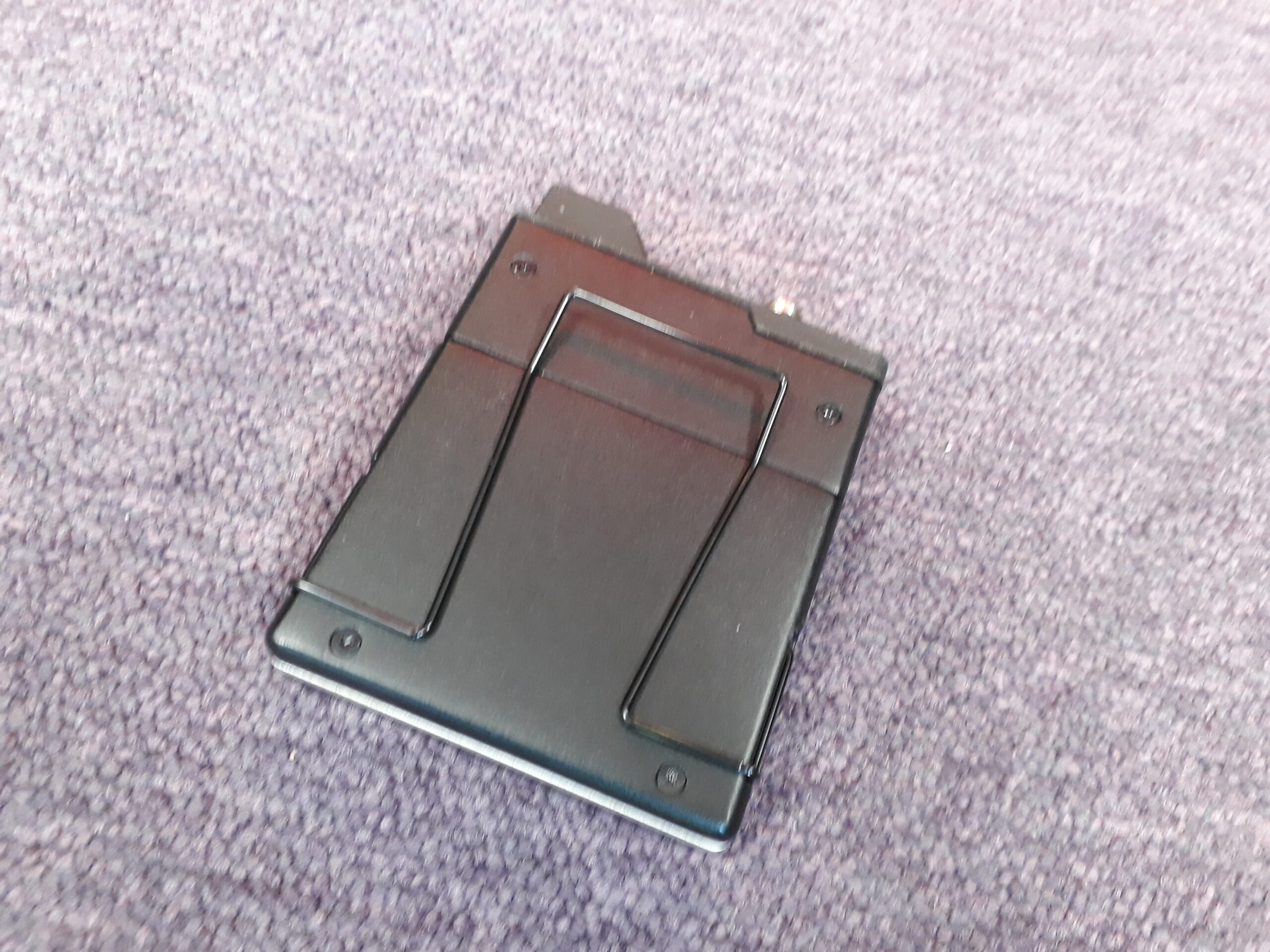

Relay TB516 G Transmitter

• Transmitter Input: 1/4″ Jack (Tip-Sleeve)
• Operational Radio Band: 2.4GHz ISM
• Input Impedance: 1M OHM
• RF Output Power: 10mW
• Input Level (Max): 5.5Vpp
• Battery Life: > 8 Hours
• Power Requirements: 2 x AA Batteries
• Standby Time: > 60 Hours
• Available Channels: 16
